# Tinker Tickets

[![Lint](https://code.lotusguild.org/LotusGuild/tinker_tickets/actions/workflows/lint.yml/badge.svg)](https://code.lotusguild.org/LotusGuild/tinker_tickets/actions?workflow=lint.yml)
[![Security](https://code.lotusguild.org/LotusGuild/tinker_tickets/actions/workflows/security.yml/badge.svg)](https://code.lotusguild.org/LotusGuild/tinker_tickets/actions?workflow=security.yml)

A feature-rich PHP-based ticketing system designed for tracking and managing data center infrastructure issues with enterprise-grade workflow management and a retro terminal aesthetic.

**Documentation**: [Wiki](https://wiki.lotusguild.org/en/Services/service-tinker-tickets)
**Design System**: [web_template](https://code.lotusguild.org/LotusGuild/web_template) — shared CSS, JS, and layout patterns for all LotusGuild apps

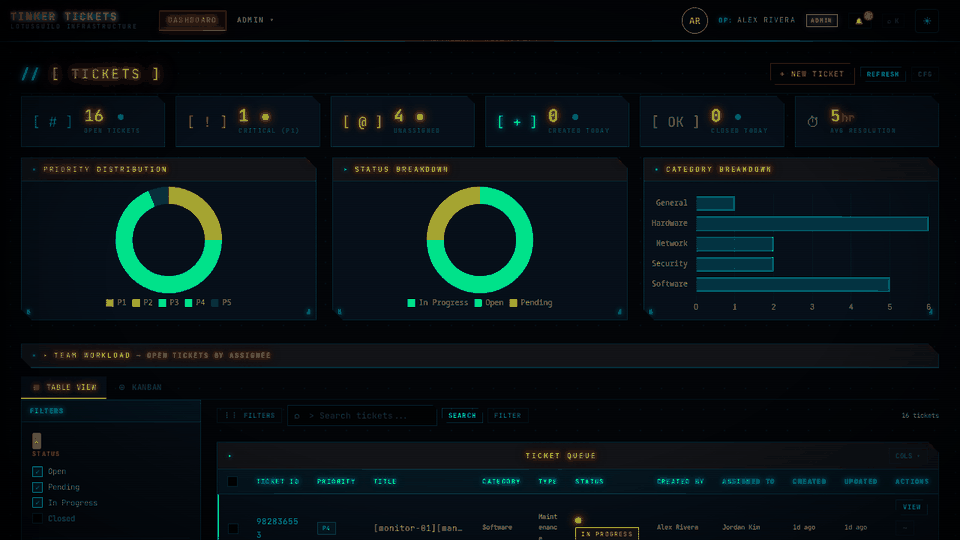

![Tinker Tickets walkthrough: dashboard, kanban, ticket detail with SLA timer, comments, dependencies, activity timeline, command palette and workflow designer](docs/img/demo.gif)

## Why this exists

Running a six-node Proxmox/Ceph cluster generates a steady stream of small problems: a drive with SMART warnings, a link that flaps, a certificate about to expire. Off-the-shelf helpdesks are heavyweight for that, and a plain todo list loses the history. Tinker Tickets is a small, opinionated ticketing system built for exactly this: tickets are created **automatically by monitoring** (and by hand), deduplicated so a repeating alert updates one ticket instead of flooding the queue, and every change is audited.

```mermaid
flowchart LR
  hw["hwmonDaemon<br/>SMART, Ceph, temps"] -->|Bearer API| tt
  gd["GANDALF<br/>network regressions"] -->|Bearer API| tt
  mcp["MCP server<br/>Claude Code / agents (OAuth)"] --> tt
  ui["Web UI<br/>people"] --> tt
  tt{{"Tinker Tickets<br/>PHP + MariaDB"}} -->|webhook| mx["Matrix notifications"]
  tt --> audit[("Audit log<br/>timeline per ticket")]
```

## Gallery

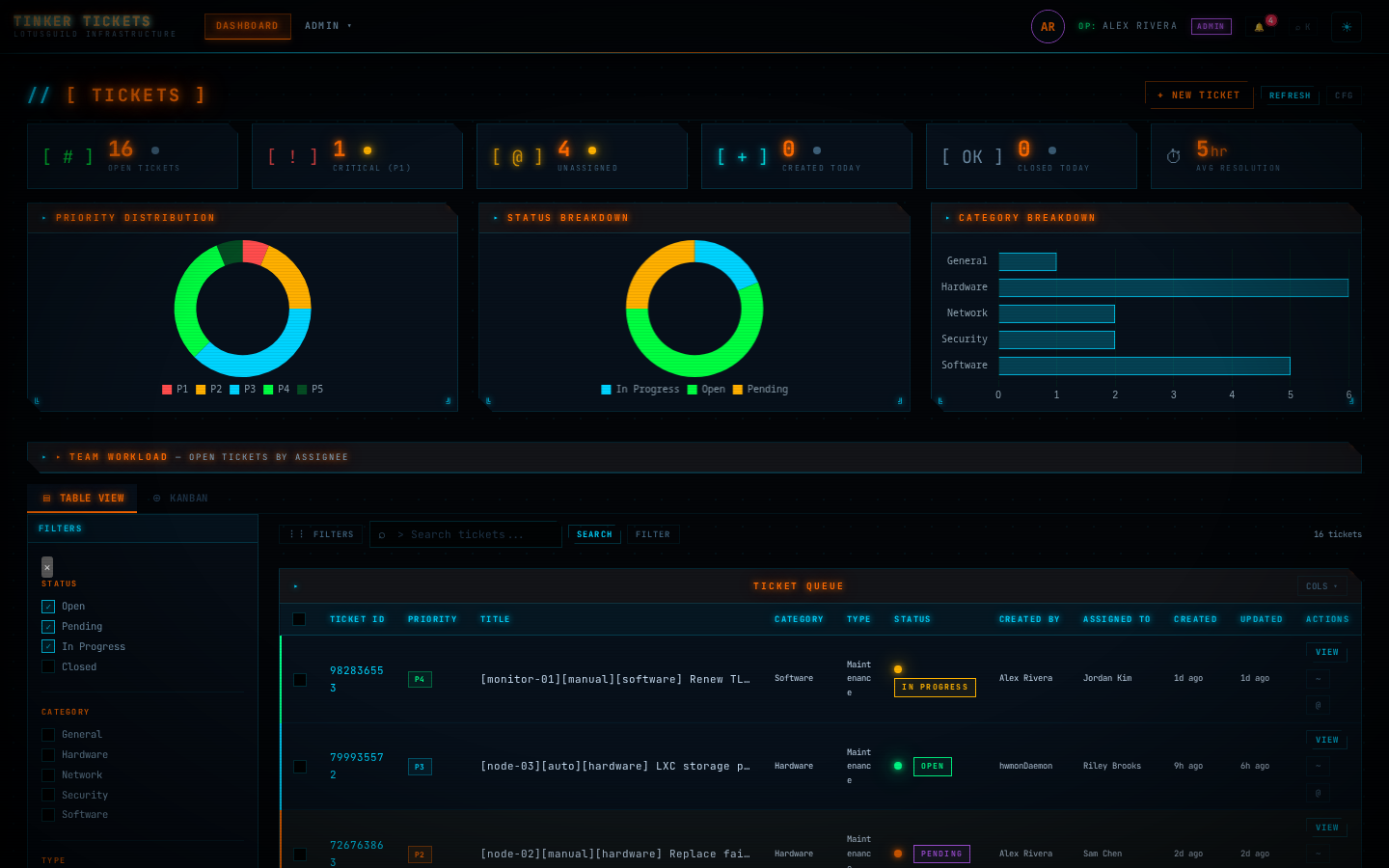

**Dashboard**: live stat cards, priority and status breakdowns, team workload and a filterable queue.

![Dashboard](docs/img/dashboard.png)

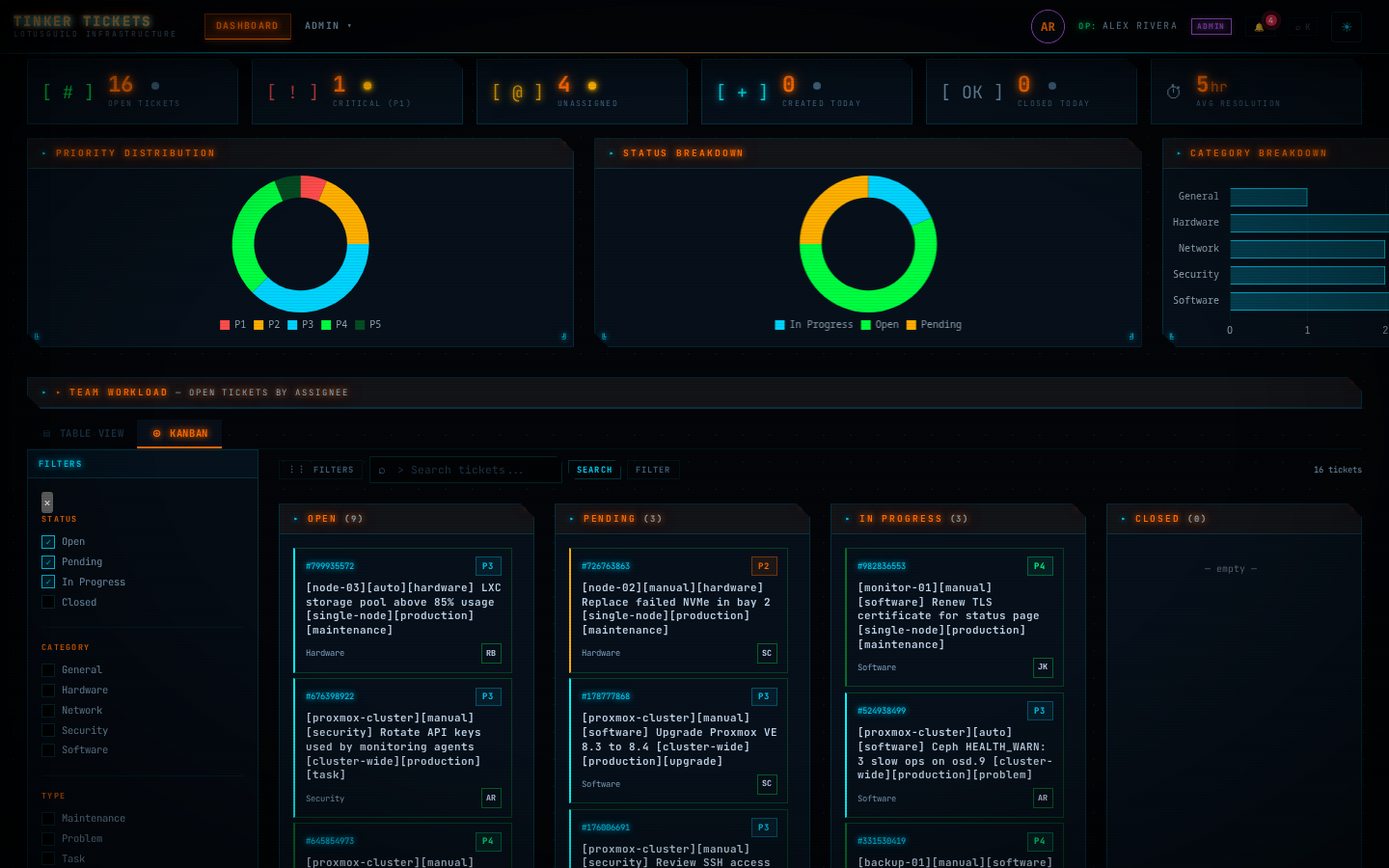

**Kanban view** with per-column counts and priority-coloured cards:

![Kanban board](docs/img/kanban.png)

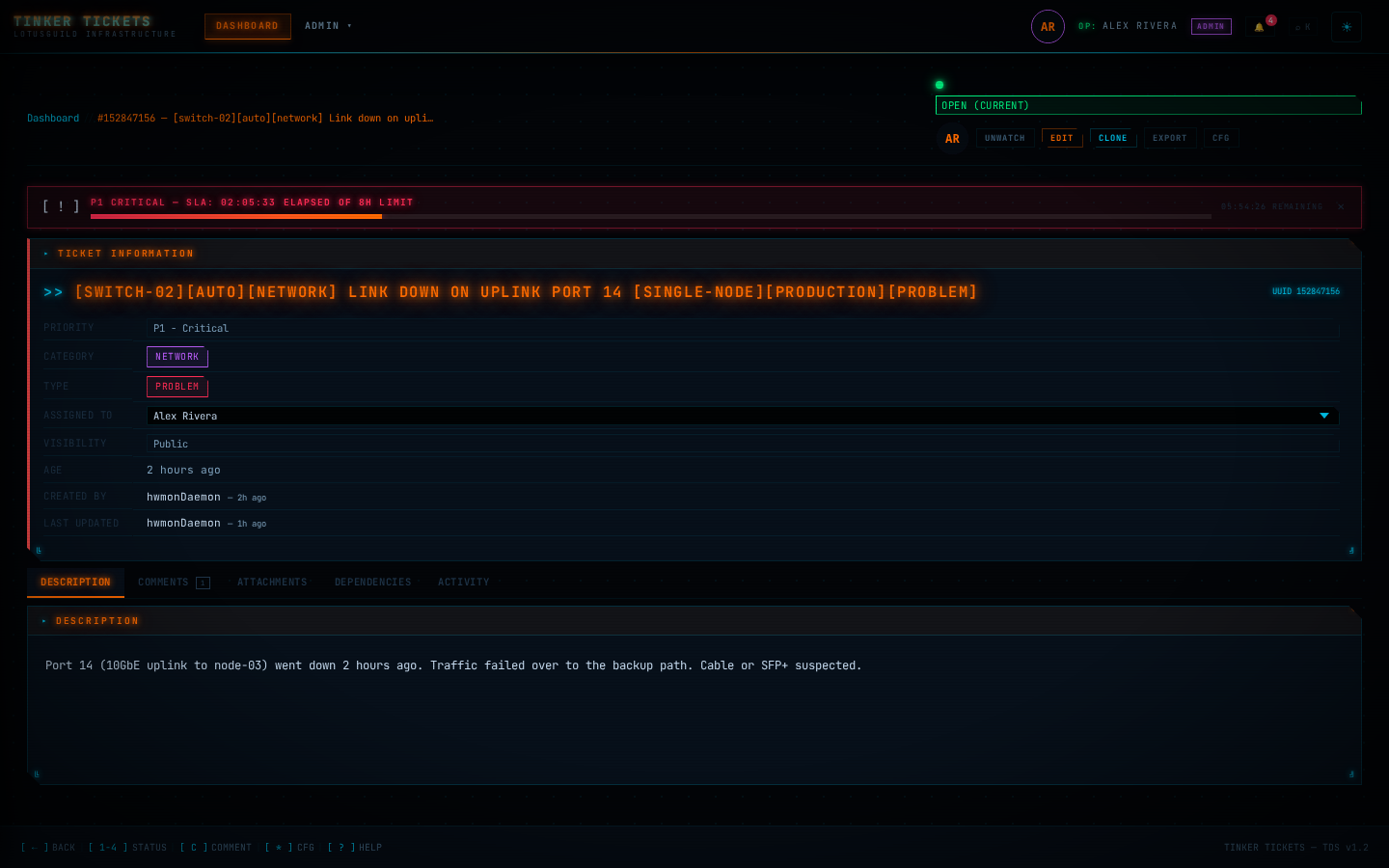

**Ticket detail** with a live P1/P2 SLA timer, full metadata and a tabbed workspace:

![Ticket with SLA banner](docs/img/ticket-sla.png)

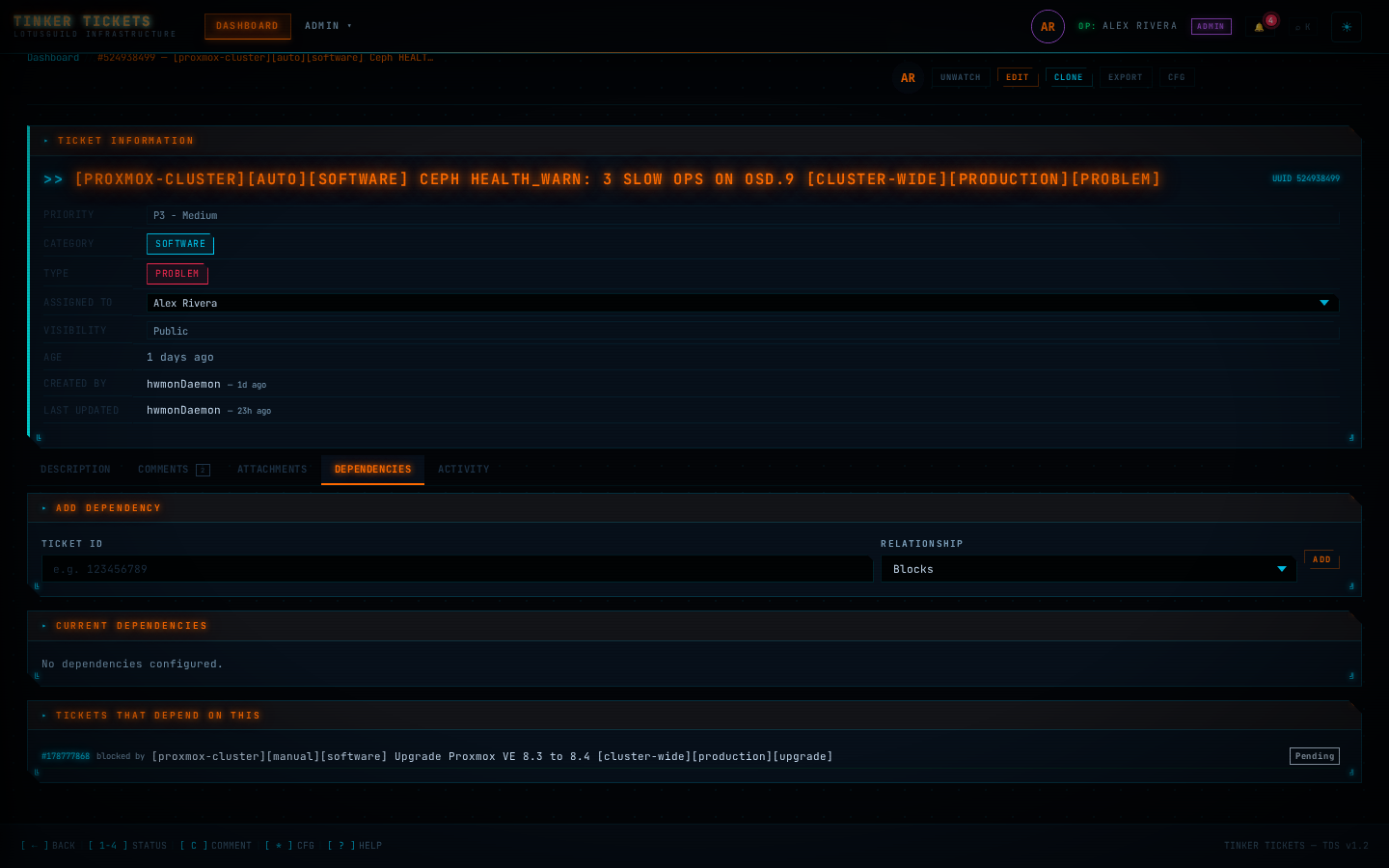

| Comments (Markdown, @mentions) | Dependencies (blocks / relates to) |
|---|---|
| ![Comments](docs/img/ticket-comments.png) | ![Dependencies](docs/img/ticket-dependencies.png) |

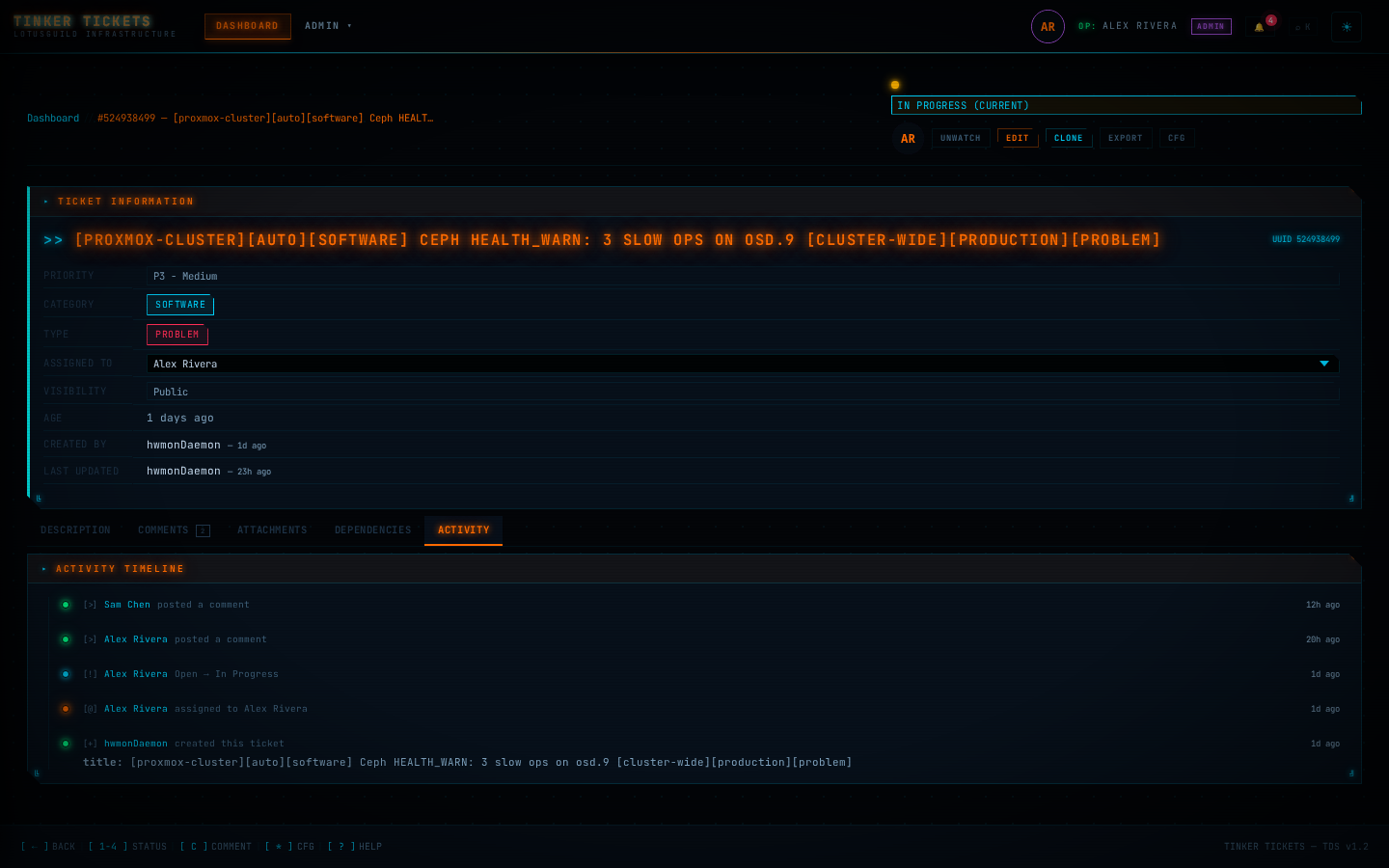

**Activity timeline**, derived from the audit log (creation, assignment, status changes, comments):

![Activity timeline](docs/img/ticket-activity.png)

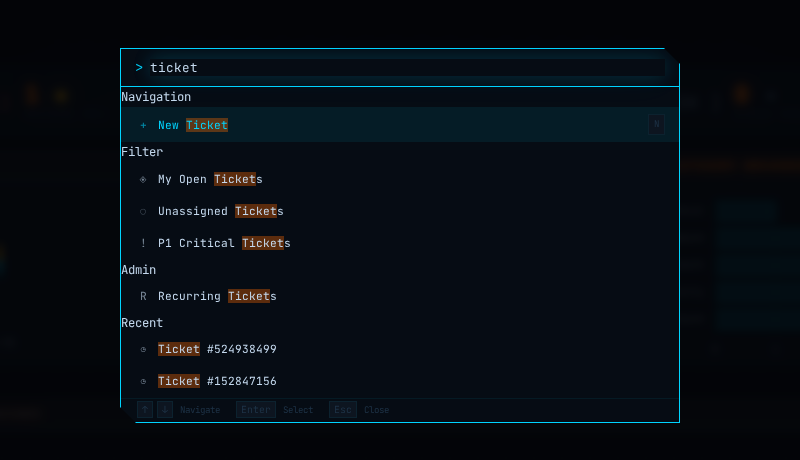

**Command palette** (`Ctrl+K`) jumps to pages, saved filters and recently viewed tickets:

![Command palette](docs/img/command-palette.png)

**Admin tools:**

| Workflow designer | API keys (scoped, revocable) |
|---|---|
| ![Workflow designer](docs/img/admin-workflow.png) | ![API keys](docs/img/admin-api-keys.png) |

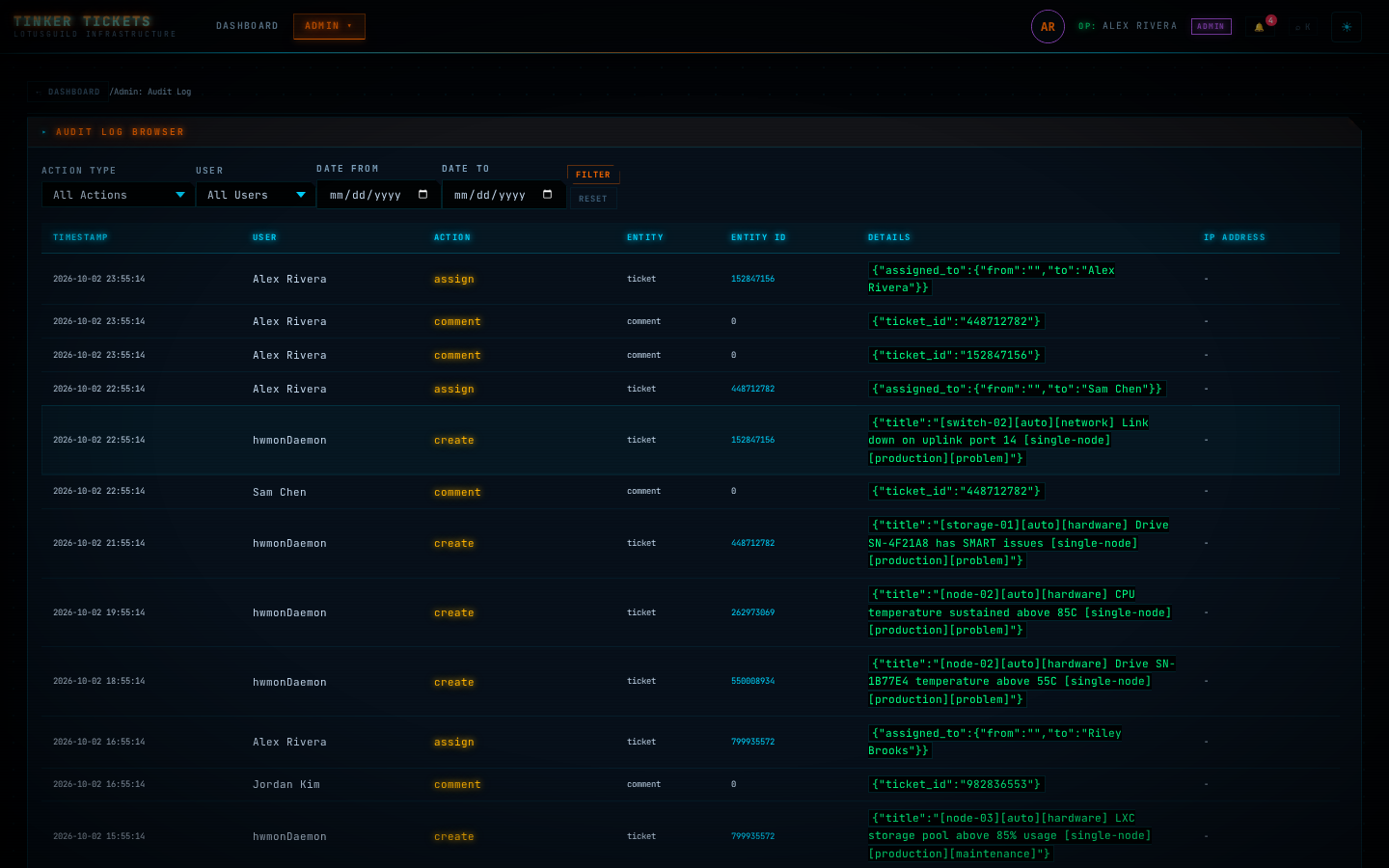

| **Audit log** | **Recurring tickets** |
| ![Audit log](docs/img/admin-audit-log.png) | ![Recurring tickets](docs/img/admin-recurring.png) |

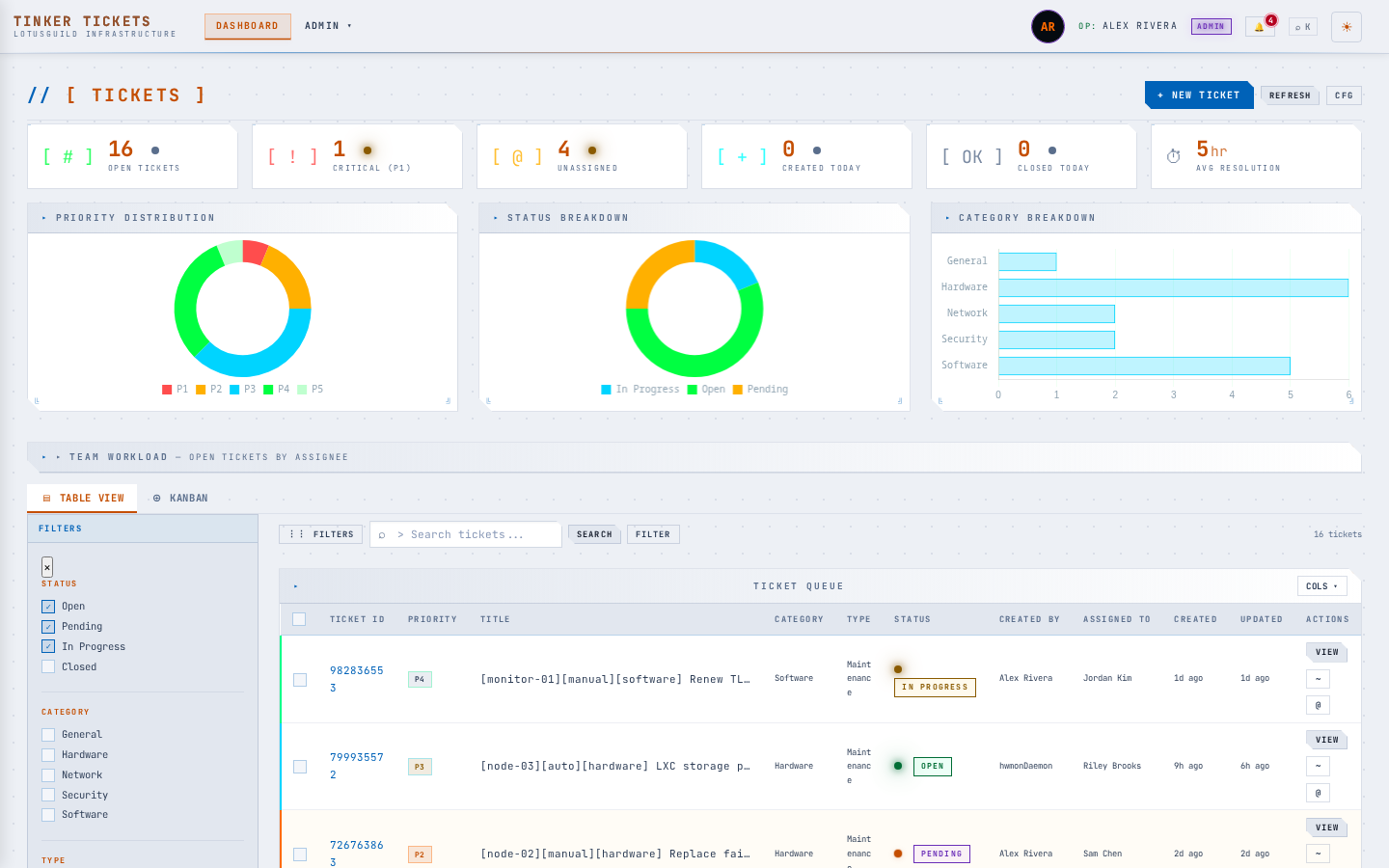

**Light theme** (the whole app follows the [web_template](https://code.lotusguild.org/LotusGuild/web_template) theme toggle):

![Dashboard, light theme](docs/img/dashboard-light.png)

<sub>Screenshots are generated with Playwright against a throwaway local instance seeded with fictional demo data (`scripts/demo/`).</sub>

## Styling & Layout

Tinker Tickets uses the **LotusGuild Terminal Design System**. For all styling, component, and layout documentation see:

- [`web_template/README.md`](https://code.lotusguild.org/LotusGuild/web_template/src/branch/main/README.md) — full component reference, CSS variables, JS API
- [`web_template/base.css`](https://code.lotusguild.org/LotusGuild/web_template/src/branch/main/base.css) — unified CSS (`.lt-*` classes)
- [`web_template/base.js`](https://code.lotusguild.org/LotusGuild/web_template/src/branch/main/base.js) — `window.lt` utilities (toast, modal, CSRF, fetch helpers)
- [`web_template/php/layout.php`](https://code.lotusguild.org/LotusGuild/web_template/src/branch/main/php/layout.php) — PHP base layout template

**Key conventions:**
- All `.lt-*` CSS classes come from `base.css` — do not duplicate them in `assets/css/`
- All `lt.*` JS utilities come from `base.js` — use `lt.toast`, `lt.modal`, `lt.api`, etc.
- CSP nonces: every `<script>` tag needs `nonce="<?php echo $nonce; ?>"`
- CSRF: inject `window.CSRF_TOKEN` via the nonce-protected inline script block; `lt.api.*` adds the header automatically

## Design Decisions

The following features are intentionally **not planned** for this system:
- **Email Integration**: Matrix (hookshot webhook) is the chosen external notification method
- **Time Tracking**: Out of scope for current requirements
- **OAuth2/External Identity Providers**: Authelia is the only approved SSO method

## Core Features

### Dashboard & Ticket Management
- **View Modes**: Toggle between Table view and Kanban card view (drag-and-drop status changes)
- **Right Drawer Preview**: Click any ticket title to open a quick-preview panel without navigating away
- **Stats Widgets**: Clickable cards for quick filtering (Open, Critical, Unassigned, Today's tickets) with live trend indicators
- **Charts**: Priority distribution donut, status breakdown donut, and category bar chart (Chart.js, CDN)
- **Team Workload**: Collapsible panel showing open ticket count per assignee with progress bars
- **Full-Text Search**: Search across tickets, descriptions, and metadata
- **Advanced Search**: Date ranges (Flatpickr), priority ranges, user filters
- **Saved Filters**: Save and recall filter presets; quick-switch pills above the table
- **Column Visibility**: Toggle which dashboard table columns are shown; persisted in localStorage
- **Ticket Assignment**: Assign tickets to specific users with typeahead search
- **Priority Tracking**: P1 (Critical) to P5 (Minimal Impact) with color-coded indicators and status dots
- **Custom Categories**: Hardware, Software, Network, Security, General
- **Ticket Types**: Maintenance, Install, Task, Upgrade, Issue, Problem
- **Skeleton Loaders**: Loading placeholders during filter changes and data refresh
- **Export**: Export filtered tickets to CSV or JSON format
- **Ticket Linking**: Reference other tickets in comments using `#123456789` format

### Ticket Visibility Levels
- **Public**: All authenticated users can view the ticket
- **Internal**: Only users in specified groups can view the ticket (at least one group required)
- **Confidential**: Only the creator, assignee, and admins can view the ticket

### Workflow Management
- **Status Transitions**: Enforced workflow rules (Open → Pending → In Progress → Closed)
- **Comment Requirements**: Transitions that require a comment open an inline modal before committing the change
- **Workflow Designer**: Visual admin UI at `/admin/workflow` to configure transitions
- **Workflow Validation**: Server-side validation prevents invalid status changes
- **Admin Controls**: Certain transitions can require admin privileges

### Collaboration Features
- **Markdown Comments**: Full Markdown support with live preview, toolbar, and table rendering
- **@Mentions**: Tag users in comments with `@` autocomplete (typeahead); triggers Matrix notification to mentioned user
- **Comment Edit/Delete**: Comment owners and admins can edit or delete comments
- **Auto-linking**: URLs in comments are automatically converted to clickable links
- **File Attachments**: Upload files to tickets with drag-and-drop; image attachments display as thumbnails with lightbox zoom
- **Ticket Cloning**: Duplicate any ticket with a single click; auto-links as `relates_to`
- **Ticket Dependencies**: Link tickets as blocks / blocked-by / relates-to / duplicates
- **Duplicate Detection**: Similarity check on ticket title surfaces potential duplicates with one-click linking
- **Activity Timeline**: Full `lt-timeline` audit trail — color-coded by event type (status, comment, assign, attach)
- **Watcher Avatars**: Avatar group shows who is watching a ticket; tooltip lists all names
- **SLA Timer**: P1/P2 tickets display a live elapsed-time banner with progress bar (P1 = 8 h, P2 = 24 h). Lower priorities (P3–P5) have no SLA banner.
- **Priority Alert Banner**: P1 shows a sticky error banner; P2 shows a warning banner — dismissible per session

### Ticket Templates
- **Template Management**: Admin UI at `/admin/templates` to create/edit templates
- **Quick Creation**: Pre-configured templates for common issues
- **Auto-fill**: Templates populate title, description, category, type, and priority

### Recurring Tickets
- **Scheduled Tickets**: Automatically create tickets on a schedule
- **Admin UI**: Manage at `/admin/recurring-tickets`
- **Flexible Scheduling**: Daily, weekly, or monthly recurrence
- **Cron Integration**: Run `cron/create_recurring_tickets.php` to process

### Custom Fields
- **Per-Category Fields**: Define custom fields for specific ticket categories
- **Admin UI**: Manage at `/admin/custom-fields`
- **Field Types**: Text, textarea, select, checkbox, date, number
- **Required Fields**: Mark fields as required for validation

### API Key Management
- **Admin UI**: Generate and manage API keys at `/admin/api-keys` (paginated)
- **Bearer Token Auth**: Use API keys with `Authorization: Bearer YOUR_KEY` header
- **Key Scopes**: `read` (GET only) or `read_write` (create/comment/close). A `read` key cannot mutate anything, including creating tickets. Existing keys default to `read_write`.
- **Visibility Scope**: keys default to **public-visibility tickets only** — Confidential and Internal tickets are excluded from `/api/tickets_api.php`, same as they'd be for a regular user with no special access. Check **See all visibility** when generating a key only if that specific integration genuinely needs the full queue; this is a deliberate opt-in, not something a key gets by having `read_write` scope or any other setting.
- **Expiration**: Optional expiration dates for keys
- **Revocation**: Revoke compromised keys instantly

### Bearer API (automation / triage)
All Bearer-authenticated, rate-limited, and (like `create_ticket_api.php`) exempt from Authelia at the reverse proxy — the API key is the only credential. Comments/closes made via the API are attributed to the **key's name** (linked to the key's owner).

`/api/tickets_api.php` filters by ticket visibility according to the key's **Visibility Scope** setting above (public-only by default); every other Bearer endpoint below operates on a single ticket_id supplied by the caller and does not filter a list, so this setting doesn't apply to them.

| Endpoint | Method | Scope | Purpose |
|----------|--------|-------|---------|
| `/create_ticket_api.php` | POST | read_write | Create a ticket (hwmonDaemon, external tools) |
| `/api/tickets_api.php` | GET | read | List/triage the queue (`?status=`, `?priority=`, `?host=` [title match], `?page=`, `?limit=`) **or** read one (`?ticket_id=NNN`) with its comments |
| `/api/ticket_comment_api.php` | POST | read_write | Add a comment: `{ticket_id, comment_text, markdown_enabled?}` |
| `/api/ticket_status_api.php` | POST | read_write | Change/close status (workflow-validated): `{ticket_id, status, comment?}` — `comment` is required for transitions that require one (e.g. → Closed); it is posted as the close reason in the same call |

### MCP server (Claude Code and other MCP clients)
`/mcp` is a remote [MCP](https://modelcontextprotocol.io) server (Streamable HTTP) protected by **OAuth via Authelia** — no API keys. You sign in once in the browser and every action runs **as you**: the same visibility, permissions, Workflow Designer rules, audit log and notifications as the web UI.

**Connect Claude Code** (one-time):
```bash
claude mcp add --transport http --scope user \
  --client-id tinker-tickets-mcp --callback-port 47823 \
  tinker https://t.lotusguild.org/mcp
claude mcp login tinker            # add --no-browser on a headless machine, then paste the redirect URL back
```
`--client-id` / `--callback-port 47823` are required: Authelia doesn't support dynamic client registration, so Claude Code uses the pre-registered public client `tinker-tickets-mcp`, whose only allowed redirect is `http://localhost:47823/callback`. Access requires the same `admin`/`employee` group as the web UI. Tokens refresh automatically (refresh token lasts 30 days); `claude mcp logout tinker` signs out.

| Tool | Scope | What it does |
|------|-------|--------------|
| `search_tickets` | `tickets:read` | Search/list tickets you can see (text, status, priority, category, assignee `me`/`unassigned`/username), paginated |
| `get_ticket` | `tickets:read` | One ticket's details + comments, its links (Dependencies tab, phrased from this ticket's side incl. `duplicated_by`) and a `blocked` flag (any open `blocked_by`) |
| `find_similar_tickets` | `tickets:read` | Open tickets with similar titles, by title text or an existing ticket (same finder as the ticket page's possible-duplicates list) |
| `create_ticket` | `tickets:write` | Create a ticket (title, description, priority, category, type, visibility, assignee) |
| `add_comment` | `tickets:write` | Comment (markdown, @mentions, replies) |
| `update_status` | `tickets:write` | Workflow-validated status change; `comment` required when the transition requires one |
| `assign_ticket` | `tickets:write` | Assign / unassign (admin, creator, or current assignee only) |
| `link_tickets` | `tickets:write` | Add a `blocks` / `blocked_by` / `relates_to` / `duplicates` link ("A duplicates B" = A is the duplicate; links only, never closes anything) |
| `unlink_tickets` | `tickets:write` | Remove a link, whichever ticket's side it was recorded from |

How it fits together (see issue #111 for the full design):
- **Authelia** is the authorization server: client `tinker-tickets-mcp`, custom scopes `tickets:read`/`tickets:write`, RS256 JWT access tokens carrying `preferred_username`/`groups`. Needs Authelia **≠ 4.39.21/4.39.22** (RFC 8707 `resource` bug); 4.39.20 or ≥ 4.39.23 are fine.
- **`mcp/server.php`** is the resource server (official `mcp/sdk`, pinned). It validates each token's signature (JWKS), issuer, **audience = this server's URL** (`MCP_RESOURCE_URL`, derived from `APP_DOMAIN`, so a beta token can't be used on prod) and expiry, then maps the user with the same rules as the web login. It serves RFC 9728 metadata at `/.well-known/oauth-protected-resource/mcp`.
- **Composer is used only by the MCP endpoint** (`vendor/` is gitignored and installed by the deploy script with `composer install --no-dev`); nothing else in the app loads it.
- **Reverse proxy:** `/mcp` and `/.well-known/oauth-protected-resource` are exempt from Authelia forward-auth (the token is the credential) and have `Remote-*` headers blanked; `vendor/`, `mcp/` and `composer.*` are never served.

### User Management & Authentication
- **SSO Integration**: Authelia authentication with LLDAP backend
- **Role-Based Access**: Admin and standard user roles
- **User Groups**: Groups displayed in settings modal, used for visibility
- **User Avatars**: JPEG avatars fetched from lldap via LDAP; cached locally (`/api/user_avatar.php`)
- **User Activity**: View per-user stats at `/admin/user-activity`
- **Session Management**: Secure PHP session handling with timeout

### Bulk Actions (Admin Only)
- **Bulk Close**: Close multiple tickets at once
- **Bulk Assign**: Assign multiple tickets to a user (typeahead search)
- **Bulk Priority**: Change priority for multiple tickets
- **Bulk Status**: Change status for multiple tickets
- **Checkbox Click Area**: Click anywhere in the checkbox cell to toggle

### In-App Notifications
- **Notification Bell**: Header bell icon with unread count badge; polls every 60 s
- **Notification Sources**: Ticket assigned to you, comment on your ticket, status change on watched ticket, @mention
- **Mark All Read**: Click the bell or "Mark all read" to clear the badge
- **Powered by audit_log**: No extra table — notifications are derived from existing audit trail

### Matrix Notifications (hookshot)
- **Ticket Created**: Fires when a ticket is created via the manual form, the external API (hwmonDaemon), or the recurring-ticket cron. (Cloned tickets do not fire this event.)
- **Status Changed**: Fires on every status transition
- **@Mentions**: Mentioned users receive a direct Matrix notification
- **Assignment**: Optional — set `MATRIX_NOTIFY_ASSIGNMENTS=1` to enable
- **Comments**: Optional — set `MATRIX_NOTIFY_COMMENTS=1` to enable
- **Watcher Alerts**: Watchers receive Matrix notifications on status changes (resolved via Synapse Admin API)
- **Rich Payloads**: JSON payloads sent to hookshot generic webhook; format ticket links using `APP_DOMAIN`

### Command Palette (Ctrl+K)
- **Global Access**: Available on every page via `Ctrl+K` or `⌘K` button in header
- **Quick Navigation**: Dashboard, New Ticket, My Tickets, admin pages
- **Recent Tickets**: Last 5 viewed tickets (stored in localStorage)
- **Filter Shortcuts**: Apply common filters directly from palette

### Keyboard Shortcuts
| Shortcut | Action |
|----------|--------|
| `Ctrl/Cmd + K` | Open command palette (global) |
| `Ctrl/Cmd + E` | Toggle edit mode (ticket page) |
| `Ctrl/Cmd + S` | Save changes (ticket page) |
| `N` | New ticket (dashboard) |
| `J` / `K` | Next / previous row (dashboard table) |
| `Enter` | Open selected ticket (dashboard) |
| `G` then `D` | Go to dashboard |
| `1`–`4` | Quick status change (ticket page) |
| `ESC` | Cancel edit / close modal |
| `?` | Show keyboard shortcuts help |

### Security Features
- **CSRF Protection**: Token-based protection with constant-time comparison. `bootstrap.php` rotates the token on a successful write and returns the current token in every response (including on rejection); the client (`lt.api`) resyncs from that value. Rejected requests do not rotate the token.
- **Rate Limiting**: Session-based AND IP-based rate limiting to prevent abuse
- **Security Headers**: CSP with nonces (no unsafe-inline), X-Frame-Options, X-Content-Type-Options
- **SQL Injection Prevention**: All queries use prepared statements with parameter binding
- **XSS Protection**: HTML escaped in markdown parser, CSP headers block inline scripts
- **Audit Logging**: Complete audit trail of all actions
- **Visibility Enforcement**: Access checks on ticket views, downloads, and bulk operations
- **Collision-Safe IDs**: Ticket IDs verified unique before creation

## Automated Ticket Creation (hwmonDaemon)

[hwmonDaemon](https://code.lotusguild.org/LotusGuild/hwmonDaemon) runs on all servers and creates tickets automatically for hardware/health issues. It calls the **standalone API endpoint** at the document root:

```
POST /create_ticket_api.php
Authorization: Bearer <api_key>
Content-Type: application/json

{
  "title":       "[hostname][auto][production][hardware][single-node] SMART issues on /dev/sda",
  "description": "...",
  "priority":    "2",
  "category":    "Hardware",
  "type":        "Issue"
}
```

**Key behaviours:**
- Authenticated via `Authorization: Bearer` header — API key stored in `/etc/hwmonDaemon/.env`
- **Deduplication**: Generates a SHA-256 hash from the issue category, hostname, and device (no time window). A repeat alert matching an existing **open** ticket updates its title/description and escalates the priority if the condition worsened; if the matching ticket was already **closed**, it is reopened instead of creating a new one
- Cluster-wide issues (Ceph health, etc.) deduplicate across all nodes (hostname excluded from hash)
- Matrix notification sent automatically on ticket creation, priority escalation, and reopen
- API key must be generated at `/admin/api-keys`; the key goes in hwmonDaemon's `/etc/hwmonDaemon/.env` as `TICKET_API_KEY`

## Technical Architecture

### Backend
- **Language**: PHP 7.4+
- **Database**: MariaDB/MySQL
- **Architecture**: MVC pattern with models, views, controllers
- **Authentication**: Authelia SSO with LLDAP backend

### Frontend
- **HTML5/CSS3**: Semantic markup with retro terminal styling
- **JavaScript**: Vanilla JS with Fetch API for AJAX
- **Markdown**: Custom markdown parser with toolbar
- **Terminal UI**: Box-drawing characters, monospace fonts, CRT effects
- **Mobile Responsive**: Touch-friendly controls, responsive layouts
- **Chart.js**: CDN-loaded on dashboard only — priority/status/category charts
- **Flatpickr**: CDN-loaded on dashboard only — date range filter pickers

### Database Tables

| Table | Purpose |
|-------|---------|
| `tickets` | Core ticket data with visibility |
| `ticket_comments` | Markdown-supported comments |
| `ticket_attachments` | File attachment metadata |
| `ticket_dependencies` | Ticket relationships |
| `ticket_watchers` | Per-user ticket subscriptions |
| `users` | User accounts with groups |
| `user_preferences` | User settings (rows per page, notification opts, notif_last_seen) |
| `audit_log` | Complete audit trail (also powers in-app notifications) |
| `status_transitions` | Workflow configuration |
| `ticket_templates` | Reusable templates |
| `recurring_tickets` | Scheduled tickets |
| `custom_field_definitions` | Custom field schemas |
| `custom_field_values` | Custom field data |
| `saved_filters` | Saved filter combinations |
| `bulk_operations` | Bulk operation tracking |
| `api_keys` | API key storage with hashed keys |

#### `tickets` Table Key Columns

| Column | Type | Description |
|--------|------|-------------|
| `ticket_id` | varchar(9) | Unique 9-digit identifier |
| `visibility` | enum | `public`, `internal`, `confidential` |
| `visibility_groups` | varchar(500) | Comma-separated group names (for internal) |
| `created_by` | int | Foreign key to users |
| `assigned_to` | int | Foreign key to users (nullable) |
| `updated_by` | int | Foreign key to users |
| `priority` | int | 1–5 (1=Critical, 5=Minimal) |
| `status` | varchar(20) | Open, Pending, In Progress, Closed |

#### Indexed Columns (performance)

- `tickets`: `ticket_id` (unique), `status`, `priority`, `created_at`, `created_by`, `assigned_to`, `visibility`
- `audit_log`: `user_id`, `action_type`, `entity_type`, `created_at`

### Database Schema / Migrations

- `migrations/000_baseline.sql` is the full schema baseline for the whole database. It is written to be safe to re-run (idempotent) and is the source of truth for a fresh install.
- `php migrations/migrate.php` applies any pending migration files in `migrations/` in order, tracking applied files in the `migrations` table. Use `--status` to list state and `--dry-run` to preview without executing.
- Numbered migrations on top of the baseline (all idempotent, safe to re-run): `001_widen_bulk_operations_status.sql`, `002_fix_collation_consistency.sql`, `003_fk_on_delete_set_null.sql`, `004_fix_ticket_watchers_type.sql`. A fresh install via `000_baseline.sql` already includes all of these; they only matter for upgrading an existing database.

### API Endpoints

| Endpoint | Method | Description |
|----------|--------|-------------|
| `/create_ticket_api.php` | POST | Create ticket via API key (hwmonDaemon, external tools) |
| `/api/tickets_api.php` | GET | Bearer: list/triage queue or read one ticket + comments |
| `/api/ticket_comment_api.php` | POST | Bearer: add a comment (read_write scope) |
| `/api/ticket_status_api.php` | POST | Bearer: change/close status, workflow-validated (read_write scope) |
| `/api/update_ticket.php` | POST | Update ticket with workflow validation |
| `/api/assign_ticket.php` | POST | Assign ticket to user |
| `/api/add_comment.php` | POST | Add comment to ticket |
| `/api/get_comments.php` | GET | Fetch paginated comments for a ticket |
| `/api/clone_ticket.php` | POST | Clone an existing ticket |
| `/api/get_template.php` | GET | Fetch ticket template |
| `/api/get_users.php` | GET | Get user list for assignments |
| `/api/bulk_operation.php` | POST | Perform bulk operations |
| `/api/ticket_dependencies.php` | GET/POST/DELETE | Manage dependencies |
| `/api/upload_attachment.php` | GET/POST | List or upload attachments |
| `/api/export_tickets.php` | GET | Export tickets to CSV/JSON |
| `/api/generate_api_key.php` | POST | Generate API key (admin) |
| `/api/revoke_api_key.php` | POST | Revoke API key (admin) |
| `/api/delete_comment.php` | POST | Delete comment (owner/admin) |
| `/api/update_comment.php` | POST | Update comment (owner/admin) |
| `/api/delete_attachment.php` | POST/DELETE | Delete attachment |
| `/api/download_attachment.php` | GET | Download attachment (visibility checked) |
| `/api/check_duplicates.php` | GET | Check for duplicate tickets |
| `/api/manage_recurring.php` | CRUD | Recurring tickets (admin) |
| `/api/manage_templates.php` | CRUD | Templates (admin) |
| `/api/manage_workflows.php` | CRUD | Workflow rules (admin) |
| `/api/custom_fields.php` | CRUD | Custom field definitions/values (admin) |
| `/api/saved_filters.php` | CRUD | Saved filter combinations |
| `/api/user_preferences.php` | GET/POST | User preferences |
| `/api/notifications.php` | GET/POST | In-app notifications (bell) |
| `/api/user_avatar.php` | GET | User avatar from lldap (cached JPEG) |
| `/api/audit_log.php` | GET | Audit log entries (admin) |
| `/api/watch_ticket.php` | POST | Watch/unwatch a ticket |
| `/api/health.php` | GET | Health check |

## Project Structure

```
tinker_tickets/
├── api/
│   ├── add_comment.php                   # POST: Add comment
│   ├── assign_ticket.php                 # POST: Assign ticket to user
│   ├── audit_log.php                     # GET: Audit log entries (admin)
│   ├── bootstrap.php                     # Shared auth/setup include (not a public endpoint)
│   ├── bulk_operation.php                # POST: Bulk operations (admin only)
│   ├── check_duplicates.php              # GET: Check for duplicate tickets
│   ├── clone_ticket.php                  # POST: Clone an existing ticket
│   ├── custom_fields.php                 # CRUD: Custom field definitions/values (admin)
│   ├── delete_attachment.php             # POST/DELETE: Delete attachment
│   ├── delete_comment.php                # POST: Delete comment (owner/admin)
│   ├── download_attachment.php           # GET: Download with visibility check
│   ├── export_tickets.php                # GET: Export tickets to CSV/JSON
│   ├── generate_api_key.php              # POST: Generate API key (admin)
│   ├── get_comments.php                  # GET: Fetch paginated ticket comments
│   ├── get_template.php                  # GET: Fetch ticket template
│   ├── get_users.php                     # GET: Get user list
│   ├── health.php                        # GET: Health check endpoint
│   ├── manage_recurring.php              # CRUD: Recurring tickets (admin)
│   ├── manage_templates.php              # CRUD: Templates (admin)
│   ├── manage_workflows.php              # CRUD: Workflow rules (admin)
│   ├── notifications.php                 # GET/POST: In-app notification bell
│   ├── revoke_api_key.php                # POST: Revoke API key (admin)
│   ├── saved_filters.php                 # CRUD: Saved filter combinations
│   ├── ticket_dependencies.php           # GET/POST/DELETE: Ticket dependencies
│   ├── update_comment.php                # POST: Update comment (owner/admin)
│   ├── update_ticket.php                 # POST: Update ticket (workflow validation)
│   ├── upload_attachment.php             # GET/POST: List or upload attachments
│   ├── user_avatar.php                   # GET: LDAP avatar proxy with disk cache
│   ├── user_preferences.php              # GET/POST: User preferences
│   └── watch_ticket.php                  # POST: Watch/unwatch a ticket
├── assets/
│   ├── css/
│   │   ├── base.css                      # LotusGuild Terminal Design System (copied from web_template)
│   │   ├── dashboard.css                 # Dashboard + terminal styling
│   │   └── ticket.css                    # Ticket view styling
│   ├── js/
│   │   ├── advanced-search.js            # Advanced search modal
│   │   ├── ascii-banner.js               # ASCII art banner (rendered in boot overlay on first visit)
│   │   ├── base.js                       # LotusGuild JS utilities — window.lt (copied from web_template)
│   │   ├── dashboard.js                  # Dashboard + bulk actions + kanban + sidebar + charts
│   │   ├── keyboard-shortcuts.js         # Keyboard shortcuts (uses lt.keys)
│   │   ├── markdown.js                   # Markdown rendering + ticket linking (XSS-safe)
│   │   ├── settings.js                   # User preferences
│   │   ├── ticket.js                     # Ticket + comments + visibility + @mention
│   │   ├── toast.js                      # Deprecated shim (no longer loaded — all callers use lt.toast directly)
│   │   └── utils.js                      # escapeHtml (→ lt.escHtml), getTicketIdFromUrl, showConfirmModal
│   └── images/
│       └── favicon.png
├── config/
│   ├── config.php                        # Config + .env loading
│   └── requirements.php                  # PHP version/extension requirements (single source of
│                                          #   truth for scripts/check_requirements.php + api/health.php)
├── composer.json / composer.lock         # MCP endpoint dependencies only (mcp/sdk pinned); vendor/ installed at deploy
├── controllers/
│   ├── ApiTicketController.php           # Partial ticket updates (status/fields/visibility), shared by update_ticket.php + MCP
│   ├── CommentController.php             # Comment create/edit/delete + notifications
│   ├── DashboardController.php           # Dashboard with stats + filters
│   └── TicketController.php              # Ticket CRUD + timeline + visibility
├── cron/
│   ├── cleanup_audit_log.php             # Delete audit_log rows past retention (daily)
│   ├── cleanup_ratelimit.php             # Purge expired rate-limit files (every few min)
│   └── create_recurring_tickets.php      # Process recurring ticket schedules
├── helpers/
│   ├── CacheHelper.php                   # File-based cache (stats, avatars)
│   ├── Database.php                      # Centralized mysqli connection
│   ├── ErrorHandler.php                  # Global error/exception handler
│   ├── NotificationHelper.php            # Matrix hookshot webhook events
│   ├── ResponseHelper.php                # JSON API response helpers
│   ├── SynapseHelper.php                 # Resolves usernames → Matrix IDs via Synapse admin API
│   └── UrlHelper.php                     # Canonical ticket URLs using APP_DOMAIN
├── middleware/
│   ├── ApiKeyAuth.php                    # Bearer token auth for external API (hwmonDaemon)
│   ├── AuthMiddleware.php                # Authelia SSO integration
│   ├── CsrfMiddleware.php                # CSRF protection
│   ├── RateLimitMiddleware.php           # Session + IP-based rate limiting
│   └── SecurityHeadersMiddleware.php     # CSP headers with per-request nonce generation
├── models/
│   ├── ApiKeyModel.php                   # API key generation/validation
│   ├── AttachmentModel.php               # Ticket file attachment metadata
│   ├── AuditLogModel.php                 # Audit logging + timeline
│   ├── BulkOperationsModel.php           # Bulk operations tracking
│   ├── CommentModel.php                  # Comment data access
│   ├── CustomFieldModel.php              # Custom field definitions/values
│   ├── DependencyModel.php               # Ticket dependencies
│   ├── RecurringTicketModel.php          # Recurring ticket schedules
│   ├── SavedFiltersModel.php             # Saved filter combinations
│   ├── StatsModel.php                    # Dashboard statistics (cached)
│   ├── TemplateModel.php                 # Ticket templates
│   ├── TicketModel.php                   # Ticket CRUD + visibility + collision-safe IDs
│   ├── UserModel.php                     # User management + groups
│   ├── UserPreferencesModel.php          # User preferences
│   └── WorkflowModel.php                 # Status transition workflows
├── migrations/
│   ├── 000_baseline.sql                  # Full schema baseline (safe to re-run)
│   ├── 001_widen_bulk_operations_status.sql  # Upgrade-only (already in baseline for fresh installs)
│   ├── 002_fix_collation_consistency.sql     # Upgrade-only (already in baseline for fresh installs)
│   ├── 003_fk_on_delete_set_null.sql         # Upgrade-only (already in baseline for fresh installs)
│   ├── 004_fix_ticket_watchers_type.sql      # Upgrade-only (already in baseline for fresh installs)
│   ├── 005_attachment_thumbnails.sql         # ticket_attachments.thumbnail_filename
│   ├── 006_api_key_visibility_scope.sql      # api_keys.see_all_visibility (public-only by default)
│   ├── 007_notification_retry_queue.sql      # Queue for failed Matrix webhook retries
│   └── migrate.php                       # CLI migration runner (tracks applied migrations)
├── mcp/
│   ├── server.php                        # MCP endpoint (/mcp): OAuth resource server; only file that loads vendor/
│   └── src/
│       ├── Auth/                         # IdentityMiddleware (token -> user), ToolScopeMiddleware, McpIdentity
│       ├── Tools/                        # TicketReadTools, TicketWriteTools
│       └── ToolCatalog.php               # Tool registry + which tools need tickets:write
├── scripts/
│   ├── check_requirements.php            # Verify PHP extensions/config prerequisites
│   └── cleanup_orphan_uploads.php        # Delete orphaned upload files past grace period (cron)
├── services/
│   ├── AssignmentService.php             # Assign/unassign (shared by assign_ticket.php + MCP)
│   ├── CommentService.php                # Add comment + mentions/notifications (shared by add_comment.php + MCP)
│   ├── DependencyService.php             # List/add/remove ticket links (shared by ticket_dependencies.php + MCP)
│   ├── SimilarTicketService.php          # Similar-title finder (shared by check_duplicates.php + MCP)
│   └── TicketCreationService.php         # Create ticket (shared by TicketController + MCP)
├── uploads/                              # File attachment storage (served only via PHP; nginx: internal)
│   └── avatars/                          # lldap avatar disk cache
├── views/
│   ├── admin/
│   │   ├── ApiKeysView.php               # API key management
│   │   ├── AuditLogView.php              # Audit log browser
│   │   ├── CustomFieldsView.php          # Custom field management
│   │   ├── RecurringTicketsView.php      # Recurring ticket management
│   │   ├── TemplatesView.php             # Template management
│   │   ├── UserActivityView.php          # User activity report
│   │   └── WorkflowDesignerView.php      # Workflow transition designer
│   ├── CreateTicketView.php              # Ticket creation with visibility
│   ├── DashboardView.php                 # Dashboard with kanban + sidebar + charts
│   ├── error_403.php                     # Access-denied error page
│   ├── error_404.php                     # Not-found error page
│   ├── error_500.php                     # Fatal-error page (self-contained, no app-state deps)
│   ├── layout_footer.php                 # Shared footer (notification polling, boot sequence)
│   ├── layout_header.php                 # Shared header (nav, command palette, theme toggle)
│   └── TicketView.php                    # Ticket view with timeline, SLA, watcher avatars
├── .env                                  # Environment variables (GITIGNORED)
├── create_ticket_api.php                 # External API endpoint (hwmonDaemon, API-key auth)
├── README.md                             # This file
└── index.php                             # Main router
```

## Workflow States

### Default Workflow
```
Open → Pending → In Progress → Closed
         ↑           ↑
         └───────────┘
```

All states can transition to Closed (with comment).
Closed tickets can be reopened to Open or In Progress.

## Setup & Configuration

### 1. Environment Configuration

Copy the example file and edit with your values:
```bash
cp .env.example .env
nano .env
```

Required environment variables:
```env
DB_HOST=your_db_host
DB_USER=your_db_user
DB_PASS=your_password
DB_NAME=ticketing_system
APP_DOMAIN=your.domain.example
TIMEZONE=America/New_York
```

**⚠️ REQUIRED FOR PRODUCTION — `TRUSTED_PROXIES`:** This app trusts Authelia
forward-auth headers (`Remote-User`, `Remote-Groups`, etc.) to identify who's
logged in. `TRUSTED_PROXIES` restricts that trust to requests that actually
came through your reverse proxy — **leaving it empty disables that check
entirely**, and anyone who can reach the PHP backend directly (a
misconfigured firewall rule, an exposed container port, SSRF from another
internal service) can set `Remote-User: admin` themselves and fully
impersonate any user with zero authentication. Set it to your reverse proxy's
IP address(es) before deploying anywhere reachable beyond your own machine:
```env
TRUSTED_PROXIES=10.10.10.27
```
`GET /api/health.php` reports a `warning` on the `trusted_proxies` check if
this is left empty, so it doesn't go unnoticed after deployment.

Matrix notification variables (all optional):
```env
# hookshot generic webhook URL — send events to Matrix room
MATRIX_WEBHOOK_URL=https://matrix.lotusguild.org/_hookshot/webhook/...

# Comma-separated Matrix user IDs to @mention on new tickets / status changes
MATRIX_NOTIFY_USERS=@jared:matrix.lotusguild.org,@ops:matrix.lotusguild.org

# Matrix homeserver domain (used to build Matrix user IDs from LLDAP usernames)
MATRIX_DOMAIN=matrix.lotusguild.org

# Synapse internal URL and admin token (used to resolve usernames → Matrix IDs for watcher DMs)
SYNAPSE_ADMIN_URL=http://10.10.10.29:8008
SYNAPSE_ADMIN_TOKEN=your_synapse_admin_token

# Optional: send Matrix notification on comments and/or assignments
MATRIX_NOTIFY_COMMENTS=0
MATRIX_NOTIFY_ASSIGNMENTS=1
```

LDAP/avatar variables (optional):
```env
LDAP_ENABLED=true
LDAP_HOST=10.10.10.39
LDAP_PORT=3890
LDAP_BIND_DN=uid=tinker-tickets,ou=people,dc=example,dc=com
LDAP_BIND_PW=your_bind_password
LDAP_BASE_DN=dc=example,dc=com
LDAP_USER_BASE=ou=people,dc=example,dc=com
AVATAR_CACHE_TTL=3600
```

**Note**: `APP_DOMAIN` is required for Matrix webhook ticket links to work correctly. Without it, links will default to localhost.

### 2. Cron Jobs

Add to crontab for recurring tickets and maintenance cleanup:
```bash
# Run every hour to create scheduled recurring tickets
0 * * * * php /path/to/tinkertickets/cron/create_recurring_tickets.php

# Purge expired rate-limit files (every 5 minutes)
*/5 * * * * php /path/to/tinkertickets/cron/cleanup_ratelimit.php

# Delete audit_log rows older than AUDIT_LOG_RETENTION_DAYS (daily)
30 3 * * * php /path/to/tinkertickets/cron/cleanup_audit_log.php

# Delete orphaned upload files with no attachment row, past a 24h grace period (daily).
# Add --dry-run to preview without deleting.
0 4 * * * php /path/to/tinkertickets/scripts/cleanup_orphan_uploads.php

# Retry failed Matrix webhook notifications (exponential backoff, every 5 minutes)
*/5 * * * * php /path/to/tinkertickets/cron/retry_failed_notifications.php
```

### 3. File Uploads

Ensure the `uploads/` directory exists and is writable:
```bash
mkdir -p /path/to/tinkertickets/uploads/avatars
chown www-data:www-data /path/to/tinkertickets/uploads
chmod 755 /path/to/tinkertickets/uploads
```

### 4. Authelia Integration

Tinker Tickets uses Authelia for SSO. User information is passed via headers:
- `Remote-User`: Username
- `Remote-Name`: Display name
- `Remote-Email`: Email address
- `Remote-Groups`: User groups (comma-separated)

Admin users must be in the `admin` group in LLDAP.

### 5. hwmonDaemon API Key

1. Go to `/admin/api-keys` and generate a new key named e.g. "hwmonDaemon"
2. Copy the displayed key (shown only once)
3. On each monitored server, create `/etc/hwmonDaemon/.env`:
   ```env
   TICKET_API_KEY=your_generated_key
   TICKET_API_URL=http://10.10.10.45/create_ticket_api.php
   ```

## Developer Notes

Key conventions and gotchas for working with this codebase:

1. **Session format**: `$_SESSION['user']['user_id']` (not `$_SESSION['user_id']`)
2. **API auth check**: Verify `$_SESSION['user']['user_id']` exists
3. **Admin check**: `$_SESSION['user']['is_admin'] ?? false`
4. **Config path**: `config/config.php` (not `config/db.php`)
5. **Comments table**: `ticket_comments` (not `comments`)
6. **CSRF**: Required for all POST/DELETE requests via `X-CSRF-Token` header. `bootstrap.php` rotates the token only on a successful write and returns the current token in the `csrf_token` field of every `apiRespond()` response (including rejections), so the client can resync. A rejected request keeps the existing token.
7. **Cache busting**: `ASSET_VERSION` is auto-computed from asset file mtimes; override with `ASSET_VERSION=` in `.env`
8. **Ticket linking**: Use `#123456789` in markdown-enabled comments
9. **User groups**: Stored in `users.groups` as comma-separated values
10. **API routing**: All API endpoints must be registered in `index.php` router
11. **Session in APIs**: `RateLimitMiddleware` starts the session — guard subsequent `session_start()` calls with `if (session_status() === PHP_SESSION_NONE)`
12. **Database collation**: Use `utf8mb4_general_ci` (not `unicode_ci`) for new tables
13. **Matrix URLs**: Set `APP_DOMAIN` in `.env` for correct ticket URLs in Matrix notifications
14. **Ticket ID extraction**: Use `getTicketIdFromUrl()` helper in JS files
15. **CSP nonces**: All inline `<script>` tags require `nonce="<?php echo $nonce; ?>"`
16. **Visibility validation**: Internal visibility requires at least one group — validated server-side
17. **Rate limiting**: Both session-based AND IP-based limits are enforced
18. **Relative timestamps**: Dashboard dates use `lt.time.ago()` and refresh every 60 s; full date is always in the `title` attribute for hover
19. **Boot sequence**: Shows ASCII banner then boot messages on first page visit per session (`sessionStorage.getItem('booted')`); removed on subsequent loads
20. **No raw `fetch()`**: All AJAX calls use `lt.api.get/post/put/delete()` — never use raw `fetch()`. The wrapper auto-adds `Content-Type: application/json` and `X-CSRF-Token`, auto-parses JSON, and throws on non-2xx.
21. **Confirm dialogs**: Never use browser `confirm()`. Use `showConfirmModal(title, message, type, onConfirm)` (defined in `utils.js`, available on all pages). Types: `'warning'` | `'error'` | `'info'`.
22. **`utils.js` on all pages**: `utils.js` is loaded by all views (including admin). It provides `escapeHtml()`, `getTicketIdFromUrl()`, and `showConfirmModal()`.
23. **No `toast.js`**: `toast.js` is deprecated and no longer loaded by any view. Use `lt.toast.success/error/warning/info()` directly from `base.js`.
24. **Stats cache**: `StatsModel` caches stats for 60 s. Any path that modifies ticket state must call `(new StatsModel($conn))->invalidateCache()` after the change. Callers: `TicketController::create` (manual create), `create_ticket_api.php` (external API create/escalate/reopen), `cron/create_recurring_tickets.php`, `bulk_operation`, `assign_ticket`, `update_ticket`, `clone_ticket`, and `ticket_status_api.php` (Bearer API status-change endpoint).
25. **External API (`create_ticket_api.php`)**: Uses `ApiKeyAuth` (Bearer token), not session auth. Served directly by the web server from the document root — not through the index.php router. Includes deduplication logic (SHA-256 hash, no time window) that updates/escalates an existing open duplicate or reopens a closed one rather than creating a new ticket.

## File Reference

| File | Purpose |
|------|---------|
| `index.php` | Main router for all routes |
| `create_ticket_api.php` | External API (hwmonDaemon) — Bearer token auth, deduplication |
| `config/config.php` | Config loader + .env parsing |
| `api/update_ticket.php` | Ticket updates with workflow + visibility validation |
| `api/notifications.php` | In-app notification bell — reads from audit_log |
| `api/user_avatar.php` | LDAP avatar proxy with disk cache |
| `api/download_attachment.php` | File downloads with visibility check |
| `api/bulk_operation.php` | Bulk operations with visibility filtering |
| `models/TicketModel.php` | Ticket CRUD, visibility filtering, collision-safe ID generation |
| `models/ApiKeyModel.php` | API key generation and validation |
| `models/StatsModel.php` | Dashboard statistics (60 s cache; invalidated on ticket changes) |
| `middleware/ApiKeyAuth.php` | Bearer token authentication for external API |
| `middleware/AuthMiddleware.php` | Authelia header parsing + session setup |
| `middleware/CsrfMiddleware.php` | CSRF token generation and validation |
| `middleware/SecurityHeadersMiddleware.php` | CSP headers with per-request nonce generation |
| `middleware/RateLimitMiddleware.php` | Session + IP-based rate limiting |
| `helpers/NotificationHelper.php` | Matrix hookshot webhook events |
| `helpers/SynapseHelper.php` | Username → Matrix ID resolution via Synapse admin API |
| `assets/js/dashboard.js` | Dashboard UI, kanban, sidebar, bulk actions, charts, command palette |
| `assets/js/ticket.js` | Ticket UI, @mention autocomplete, lightbox, visibility editing |
| `assets/js/markdown.js` | Markdown parsing + ticket linking (XSS-safe) |
| `assets/css/dashboard.css` | Terminal styling, kanban, sidebar, charts, workload panel |
| `assets/css/ticket.css` | Ticket view: SLA progress, attachment thumbnails, timeline |

## Security Implementations

| Feature | Implementation |
|---------|---------------|
| SQL Injection | All queries use prepared statements with parameter binding |
| XSS Prevention | HTML escaped in markdown parser; CSP with per-request nonces |
| CSRF Protection | Token-based with constant-time comparison (`hash_equals`); rotated on successful writes, current token returned in every response (including rejections) for the client to resync — rejected requests do not rotate |
| Session Security | Fixation prevention, secure cookies, session timeout |
| Rate Limiting | Session-based + IP-based (file storage) |
| File Security | Path traversal prevention, MIME type validation, uploads `.htaccess` blocks execution |
| Visibility | Enforced on ticket views, downloads, and bulk operations |
| API Key Auth | SHA-256 hashed keys stored in DB; Bearer token auth for external API |

## CI / CD

| Workflow | Purpose | Triggers |
|---|---|---|
| `lint.yml` (php-lint) | phpcs PSR-12 standard | Every push and PR |
| `lint.yml` (js-lint) | ESLint on `assets/js/` | Every push and PR |
| `security.yml` | semgrep with `p/php` + `p/owasp-top-ten` configs | Every push, PR, and weekly (Monday 6am) |
| `deploy` job in `lint.yml` | Calls deploy webhooks on CT132 (10.10.10.45): `tinker-deploy` (main) or `tinker-beta-deploy` (development); tags deployed commit `deploy-YYYY.MM.DD-N` | Push to `main` or `development`, after both lint jobs pass |
| `notify-failure` job in `lint.yml` | Posts CI failure alert to Matrix via webhook | Push to any branch when lint fails |

Branch protection is enabled on `main` — both lint jobs must pass before any PR can merge.

Lint config: `.phpcs.xml` (PSR-12 with project-specific tweaks), `.eslintrc.json` (root, browser env).

## License

Internal use only - LotusGuild Infrastructure
