# Test it: prints the health summary and the tickets it WOULD create (nothing is sent)
python3 -c "import urllib.request; exec(urllib.request.urlopen('https://code.lotusguild.org/LotusGuild/hwmonDaemon/raw/branch/main/hwmonDaemon.py').read().decode('utf-8'))" --dry-run

# Run for real (creates tickets)
python3 -c "import urllib.request; exec(urllib.request.urlopen('https://code.lotusguild.org/LotusGuild/hwmonDaemon/raw/branch/main/hwmonDaemon.py').read().decode('utf-8'))"

# Install the systemd timer (hourly check)
curl -o /etc/systemd/system/hwmon.service https://code.lotusguild.org/LotusGuild/hwmonDaemon/raw/branch/main/hwmon.service && curl -o /etc/systemd/system/hwmon.timer https://code.lotusguild.org/LotusGuild/hwmonDaemon/raw/branch/main/hwmon.timer && systemctl daemon-reload && systemctl enable --now hwmon.timer

Why this exists

A six-node Proxmox/Ceph cluster fails in small, boring ways: a drive starts reallocating sectors, a node runs hot, a pool fills up, Ceph reports slow operations. Nobody watches a dashboard all day, and a naive alert that fires every hour buries the one that matters. hwmonDaemon runs on every node, checks the hardware, and files one ticket per real problem in Tinker Tickets, with the diagnosis already written up.

flowchart LR
  subgraph node["each Proxmox node (systemd timer)"]
    smart["SMART + drive usage"] --> detect
    sys["memory / CPU load / ECC"] --> detect
    net["management + Ceph network"] --> detect
    ceph["Ceph health + OSDs"] --> detect
    lxc["LXC storage"] --> detect
    detect{{"Detect + filter<br/>sustained load, standing flags"}}
  end
  detect -->|"dedup key: category + host + device"| api["Tinker Tickets API"]
  api -->|"open ticket exists"| upd["update it"]
  api -->|"closed, problem recurs"| reopen["reopen it"]
  api -->|"new problem"| new["create ticket"]

Design choices worth calling out:

Dedup by hash of category + hostname + device, so a repeating alert updates the existing ticket and a recurrence reopens a closed one.
Sustained, not spiky: CPU tickets are gated on the 15-minute load average per core, not a transient spike.
Knows the cluster: a standing Ceph noout flag (set on purpose for a node without a UPS) is not ticketed.
Dry-run first: --dry-run prints exactly what would be filed, which is how the screenshots below were produced (on a live node, with nothing sent).

Gallery

Output from a live node (micro1) in dry-run mode:

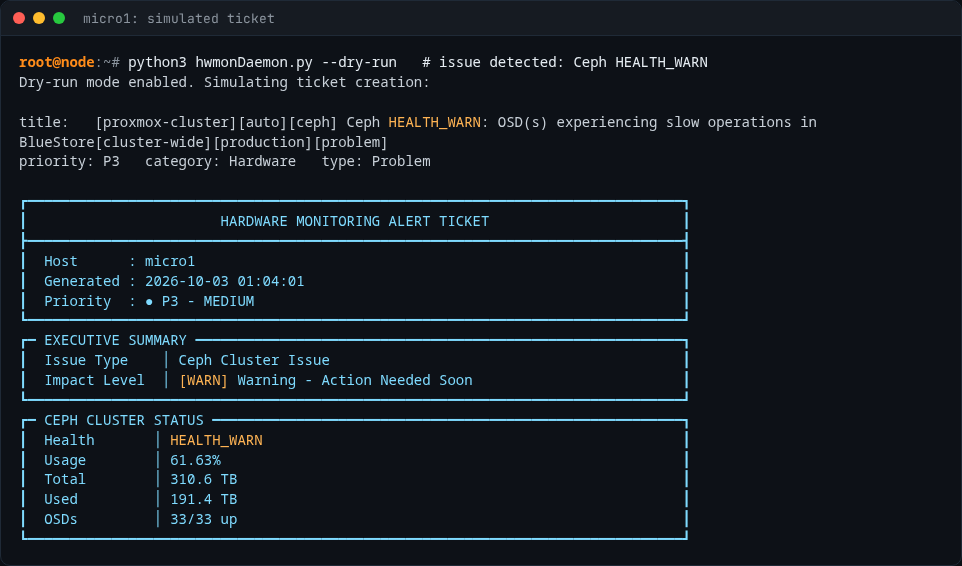

An issue was detected (Ceph reporting slow BlueStore operations), so the daemon renders the ticket it would create, including an executive summary and the cluster status:

_{Rendered from real command output with scripts/render_terminal.py.}

Features

Comprehensive system health monitoring:
- Drive health (SMART status and disk usage)
- Memory usage
- CPU utilization
- Network connectivity (Management and Ceph networks)
Automatic ticket creation for detected issues
Configurable thresholds and monitoring parameters
Dry-run mode for testing
Systemd integration for automated daily checks
LXC container storage monitoring
Historical trend analysis for predictive failure detection
Manufacturer-specific SMART attribute interpretation
ECC memory error detection

Installation

Copy the service and timer files to systemd:

sudo cp hwmon.service /etc/systemd/system/
sudo cp hwmon.timer /etc/systemd/system/

Reload systemd daemon:

sudo systemctl daemon-reload

Enable and start the timer:

sudo systemctl enable hwmon.timer
sudo systemctl start hwmon.timer

One liner (run as root)

curl -o /etc/systemd/system/hwmon.service https://code.lotusguild.org/LotusGuild/hwmonDaemon/raw/branch/main/hwmon.service && curl -o /etc/systemd/system/hwmon.timer https://code.lotusguild.org/LotusGuild/hwmonDaemon/raw/branch/main/hwmon.timer && systemctl daemon-reload && systemctl enable hwmon.timer && systemctl start hwmon.timer

Manual Execution

Direct Execution (from local file)

Run the daemon with dry-run mode to test:

python3 hwmonDaemon.py --dry-run

Run the daemon normally:

python3 hwmonDaemon.py

Remote Execution (same as systemd service)

Execute directly from repository without downloading:

Run with dry-run mode to test:

/usr/bin/env python3 -c "import urllib.request; exec(urllib.request.urlopen('https://code.lotusguild.org/LotusGuild/hwmonDaemon/raw/branch/main/hwmonDaemon.py').read().decode('utf-8'))" --dry-run

Run normally (creates actual tickets):

/usr/bin/env python3 -c "import urllib.request; exec(urllib.request.urlopen('https://code.lotusguild.org/LotusGuild/hwmonDaemon/raw/branch/main/hwmonDaemon.py').read().decode('utf-8'))"

Configuration

The daemon monitors:

Disk usage (warns at 80%, critical at 90%)
LXC storage usage (warns at 80%, critical at 90%)
Memory usage (warns at 80%)
CPU usage (warns at 95%)
Network connectivity to management (10.10.10.1) and Ceph (10.10.90.1) networks
SMART status of physical drives with manufacturer-specific profiles
Temperature monitoring (warns at 65°C)
Automatic duplicate ticket prevention
Enhanced logging with debug capabilities

Data Storage

The daemon creates and maintains:

Log Directory: /var/log/hwmonDaemon/
Historical SMART Data: JSON files for trend analysis
Data Retention: 30 days of historical monitoring data
Storage Limit: Automatically enforced 10MB maximum
Cleanup: Oldest files deleted first when limit exceeded

Ticket Creation

The daemon automatically creates tickets with:

Standardized titles including hostname, hardware type, and scope
Detailed descriptions of detected issues with drive specifications
Priority levels based on severity (P2-P4)
Proper categorization and status tracking
Executive summaries and technical analysis

Dependencies

Python 3
Required Python packages:
- psutil
- requests
System tools:
- smartmontools (for SMART disk monitoring)
- nvme-cli (for NVMe drive monitoring)

Excluded Paths

The following paths are automatically excluded from monitoring:

/media/*
/mnt/pve/mediafs/*
/opt/metube_downloads
Pattern-based exclusions for media and download directories

Service Configuration

The daemon runs:

Hourly via systemd timer (with 60-second randomized delay)
As root user for hardware access
With automatic restart on failure
5-minute timeout for execution
Logs to systemd journal

Recent Improvements

Version 2.0 (January 2026):

✅ Added 10MB storage limit with automatic cleanup
✅ File locking to prevent race conditions
✅ Disabled monitoring for unreliable Ridata drives
✅ Added timeouts to all network/subprocess calls (10s API, 30s subprocess)
✅ Fixed unchecked regex patterns
✅ Improved error handling throughout
✅ Enhanced systemd service configuration with restart policies

Troubleshooting

# View service logs
sudo journalctl -u hwmon.service -f

# Check service status
sudo systemctl status hwmon.timer

# Manual test run
python3 hwmonDaemon.py --dry-run

Security Note

Ensure proper network security measures are in place as the service downloads and executes code from a specified URL.

CI

Workflow	Purpose	Triggers
`lint.yml`	flake8 on all `.py` files	Every push and PR
`security.yml`	bandit `-ll` (medium+ severity)	Every push, PR, and weekly Monday 6am

Branch protection is enabled on main — the lint check must pass before any PR can merge. Lint config: .flake8 (max-line-length 120, F841/E501 ignored).
